Specification: Group CMS Sidebar Menu — Sections "Booking", "Minigame", "Membership" & "Voucher"

Last Updated: 15/07/2026
Type: CMS Navigation — Menu Grouping
System: Saleor CMS — Sidebar Menu under "Golden Lotus" Section

Feedback Screenshots:

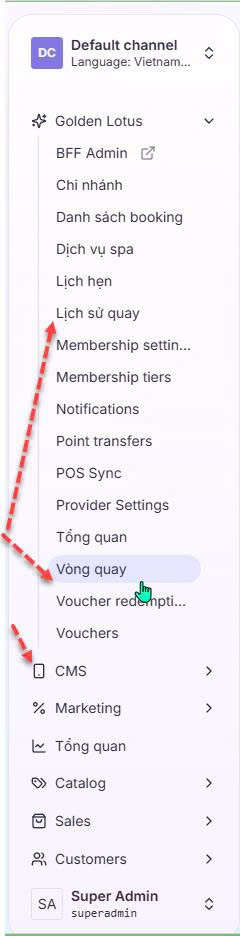

• Screenshot 1: Spin History and Lucky Spin are flat list items → Group under Minigame

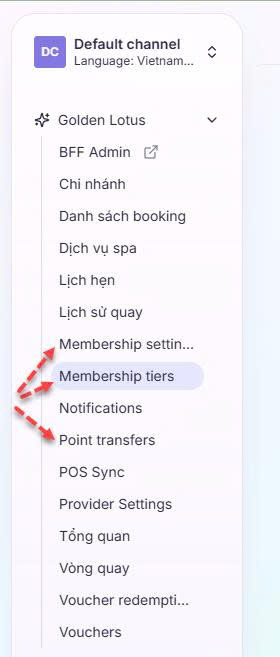

• Screenshot 2: Membership settings and Membership tiers are flat → Group under Membership

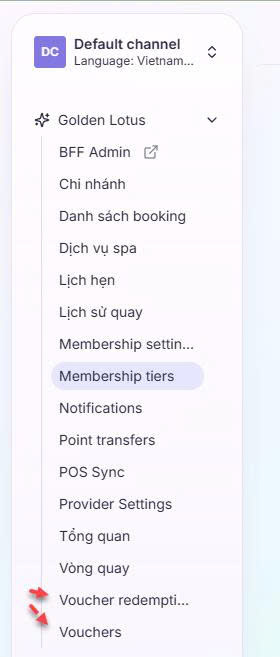

• Screenshot 3: Voucher redemptions and Vouchers are flat → Group under Voucher

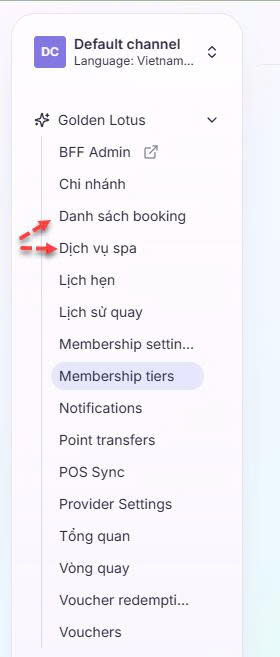

• Screenshot 4: Booking list and Spa services are flat → Group under Booking

---

1. Current Issue

In the CMS sidebar (under the Golden Lotus section), several menu items are displayed in a flat alphabetical list without sub-groups. This makes navigation cumbersome for the Admin:

Minigame Section (no parent group):

• Lịch sử quay (Spin History) → mid-list
• Vòng quay (Lucky Spin) → end-list
• Report vòng quay (Spin Report) → missing

Membership Section (no parent group):

• Membership settings → mid-list
• Membership tiers → right below settings, but no parent node

Voucher Section (no parent group):

• Voucher redemptions → bottom list
• Vouchers → bottom list, no parent node
• Report voucher → missing

Booking Section (no parent group):

• Danh sách booking (Booking List) → top list
• Dịch vụ spa (Spa Services) → top list, no parent node
• Lịch hẹn (Schedules) → top list, no parent node
• Report booking → missing

---

2. Minigame Grouping Requirements

Create a new parent section named "Minigame" containing 3 sub-menu items:

📁 Minigame
   ├── 🎡 Vòng quay (Lucky Spin)           (prizes, win rate%, enable/disable toggle)
   ├── 📊 Report vòng quay (Spin Report)   (statistics, prizes distributed)
   └── 📋 Lịch sử quay (Spin History)      (user logs per spin)

🎡 Vòng quay (Lucky Spin Config)

• Function: Configure the lucky spin wheel parameters.
• Config Fields:
  • Enable/Disable Lucky Spin module (luckySpinEnabled)
  • Enable/Disable daily popup trigger (dailyPopupEnabled)
  • Daily free spins per user (dailyFreeSpins) — Default: 1
  • Max automatic popups per day (maxPopupPerDay) — Default: 1
  • Campaign start/end dates (startDate, endDate)
  • Prize wheel segments list: segment name, prize type (Point/Voucher), win rate %, inventory stock limit.

📊 Report vòng quay (Spin Report)

• Function: High-level campaign performance metrics.
• Data to display:
  • Total spins played during the period
  • Total prizes distributed (grouped by type: Point vs Voucher)
  • Actual win rate vs configured win rate %
  • Remaining stock per prize segment
  • Daily/Weekly spin frequency charts

📋 Lịch sử quay (Spin History)

• Function: Audit log of all spins.
• Data columns:
  • Member Name / Phone Number
  • Timestamp
  • Prize Won (prize segment name, value)
  • Spin Ticket Type: default (daily free spin) vs marketing (added via campaign)
  • Status: Success / Failed

---

3. Implementation in Saleor CMS Navigation

To group navigation nodes in Saleor:

Step 1 — Define groups in navigation config

// File: saleor-app/src/navigation.ts or similar

export const GOLDEN_LOTUS_NAV_ITEMS = [
  // ... existing items ...

  // === MINIGAME GROUP ===
  {
    label: "Minigame",
    icon: "🎮",
    type: "group",
    children: [
      {
        label: "Vòng quay",
        url: "/apps/golden-lotus/lucky-spin/config",
        icon: SpinIcon,
      },
      {
        label: "Report vòng quay",
        url: "/apps/golden-lotus/lucky-spin/report",
        icon: ChartIcon,
      },
      {
        label: "Lịch sử quay",
        url: "/apps/golden-lotus/lucky-spin/history",
        icon: HistoryIcon,
      },
    ],
  },
];

Step 2 — Relocate nodes

• Remove the flat nodes for Vòng quay and Lịch sử quay.
• Add them under the children array of the new Minigame parent node.
• Implement the new Report vòng quay route.

---

4. Membership Grouping Requirements

Create a parent section named "Membership" containing the 2 existing nodes:

📁 Membership
   ├── ⚙️  Membership settings   (tier logic: points accrued multiplier, tier boundaries)
   └── 🏅 Membership tiers      (tier listing: Silver, Gold, Platinum, Diamond list)

Code Implementation

// Add to GOLDEN_LOTUS_NAV_ITEMS

// === MEMBERSHIP GROUP ===
{
  label: "Membership",
  icon: MembershipIcon,
  type: "group",
  children: [
    {
      label: "Membership settings",
      url: "/apps/golden-lotus/membership/settings",
      icon: SettingsIcon,
    },
    {
      label: "Membership tiers",
      url: "/apps/golden-lotus/membership/tiers",
      icon: TiersIcon,
    },
  ],
},

---

5. Voucher Grouping Requirements

Create a parent section named "Voucher" containing the 2 existing nodes + 1 new report node:

📁 Voucher
   ├── 🎫 Vouchers              (create/manage templates)
   ├── 🔁 Voucher redemptions   (history of point conversions)
   └── 📊 Report voucher        (voucher performance KPIs — new)

Voucher Report — Required KPIs

Summary Cards

KPI	Description	Sample
Vouchers Created	Total voucher templates configured	12
Total Distributed	Total individual vouchers issued to users	1,540
Used	Count of claimed vouchers marked redeemed	420 (27%)
Unused	Count of active, unredeemed vouchers	890 (58%)
Expired	Count of expired vouchers that were never used	230 (15%)

Filters

• Date range: From date → To date
• Voucher Template (dropdown): All / specific template
• Distribution Source: All / Point Redemption / Lucky Spin / Marketing Campaign / Birthday Gift
• Status: All / Used / Unused / Expired

Detailed Data Table

Column	Description
Voucher Name	Template title (e.g., "Voucher 50K Healing World")
Total Distributed	Total count issued
Used	Redeemed count + %
Unused	Active count + %
Expired	Expired count + %
Source	Distribution method
Validity Period	Start date → End date

Code Implementation

// Add to GOLDEN_LOTUS_NAV_ITEMS

// === VOUCHER GROUP ===
{
  label: "Voucher",
  icon: VoucherIcon,
  type: "group",
  children: [
    {
      label: "Vouchers",
      url: "/apps/golden-lotus/vouchers",
      icon: TicketIcon,
    },
    {
      label: "Voucher redemptions",
      url: "/apps/golden-lotus/vouchers/redemptions",
      icon: SwapIcon,
    },
    {
      label: "Report voucher",
      url: "/apps/golden-lotus/vouchers/report",
      icon: ChartIcon,
    },
  ],
},

---

6. Booking Grouping Requirements

Create a parent section named "Booking" containing 3 existing nodes + 1 new report node:

📁 Booking
   ├── 📅 Danh sách booking (Booking List)
   ├── 💆 Dịch vụ spa (Spa Services)
   ├── ⏰ Lịch hẹn (Schedules)
   └── 📊 Report booking (Booking Report — new)

Booking Report Specification — KPIs & Charts

Global Time Filter

[!IMPORTANT] The date/time filter is global — when adjusted, ALL charts, KPI blocks, and data tables on the screen update simultaneously.

[ Today ] [ Last 7 Days ] [ Last 30 Days ] [ This Month ] [ This Quarter ] [ Custom: From ___ → To ___ ]

Sub-filters:

• Branch: All / TP.HCM / Da Nang / Ha Noi / Phu Quoc
• Service: All / specific category
• Status: All / Attended / No-show / Cancelled

KPI Summary Blocks

KPI Block	Description	Unit
Total Bookings	Total appointments booked in period	Bookings
Attended	Appointments checked-in and served	Bookings + %
No-show	Active/pending bookings not checked-in	Bookings + %
Cancelled	Bookings cancelled by client or system	Bookings + %

Monthly Booking Chart by Branch

Chart Type: Grouped Bar Chart or Stacked Bar Chart

• X-axis: Month/Week depending on the date range selected
• Y-axis: Number of bookings
• Color Legend representing branches:
  • 🟤 TP.HCM
  • 🔵 Da Nang
  • 🟠 Ha Noi
  • 🟢 Phu Quốc
• Hover tooltip showing: branch name, booking count, % contribution
• Interactive legend to toggle branch visibility

Detailed Table by Branch

Column	Description
Branch	Branch location name
Total Bookings	Sum of bookings
Attended	Attended count + %
No-show	No-show/Unused count + %
Cancelled	Cancelled count + %
Top Service	Most booked service at location

Code Implementation

// Add to GOLDEN_LOTUS_NAV_ITEMS

// === BOOKING GROUP ===
{
  label: "Booking",
  icon: CalendarIcon,
  type: "group",
  children: [
    {
      label: "Danh sách booking",
      url: "/apps/golden-lotus/booking/list",
      icon: ListIcon,
    },
    {
      label: "Dịch vụ spa",
      url: "/apps/golden-lotus/booking/services",
      icon: SpaIcon,
    },
    {
      label: "Lịch hẹn",
      url: "/apps/golden-lotus/booking/schedule",
      icon: ScheduleIcon,
    },
    {
      label: "Report booking",
      url: "/apps/golden-lotus/booking/report",
      icon: ChartIcon,
    },
  ],
},

---

7. Resulting Sidebar Structure

📁 Golden Lotus
   ├── 📁 Booking               ← NEW GROUP
   │    ├── Danh sách booking
   │    ├── Dịch vụ spa
   │    ├── Lịch hẹn
   │    └── Report booking      ← NEW PAGE
   ├── BFF Admin ↗
   ├── Chi nhánh
   ├── 📁 Membership            ← NEW GROUP
   │    ├── Membership settings
   │    └── Membership tiers
   ├── 📁 Minigame              ← NEW GROUP
   │    ├── Vòng quay
   │    ├── Report vòng quay    ← NEW PAGE
   │    └── Lịch sử quay
   ├── Notifications
   ├── Point transfers
   ├── POS Sync
   ├── Provider Settings
   ├── Tổng quan
   └── 📁 Voucher               ← NEW GROUP
        ├── Vouchers
        ├── Voucher redemptions
        └── Report voucher      ← NEW PAGE

---

Technical Checklist

Minigame Group:

• Create the Minigame parent group with 3 child links: Vòng quay, Report vòng quay, Lịch sử quay.
• Remove Lịch sử quay and Vòng quay from their old positions in the flat list.
• Create the routes and views for the new Report vòng quay screen.
• Add the following settings fields to the Vòng quay configuration view: dailyFreeSpins, maxPopupPerDay, startDate, endDate.
• Verify collapse/expand styling of the group node in the sidebar.

Membership Group:

• Create the Membership parent group with 2 child links: Membership settings, Membership tiers.
• Remove Membership settings and Membership tiers from the flat list.
• Verify navigation works correctly on child nodes.

Voucher Group:

• Create the Voucher parent group with 3 child links: Vouchers, Voucher redemptions, Report voucher.
• Remove Voucher redemptions and Vouchers from the flat list.
• Build the Report voucher view displaying the 5 core KPIs: Vouchers Created, Total Distributed, Used, Unused, and Expired.
• Ensure filters (date range, template, source, status) work on the report page.

Booking Group:

• Create the Booking parent group with 4 child links: Danh sách booking, Dịch vụ spa, Lịch hẹn, Report booking.
• Remove Danh sách booking, Dịch vụ spa, and Lịch hẹn from the flat list.
• Build the Report booking view implementing the global time filter.
• Implement the branch comparison grouped bar chart and KPIs.

General:

• Modify the Saleor plugin configuration file to apply these groupings in a single commit.
• Verify that no sidebar menu items are duplicated or omitted.
