UI/UX Specification: Standardizing Customer Table View Columns & Adding Membership Tiers

Last Updated: 16/07/2026
Type: UI/UX Layout Specification — Customer Management
System: Saleor CMS — Customers > Customers List View
Severity: 🔴 High — Critical for operations, admins must immediately identify user membership tiers and access structured columns without view state loss

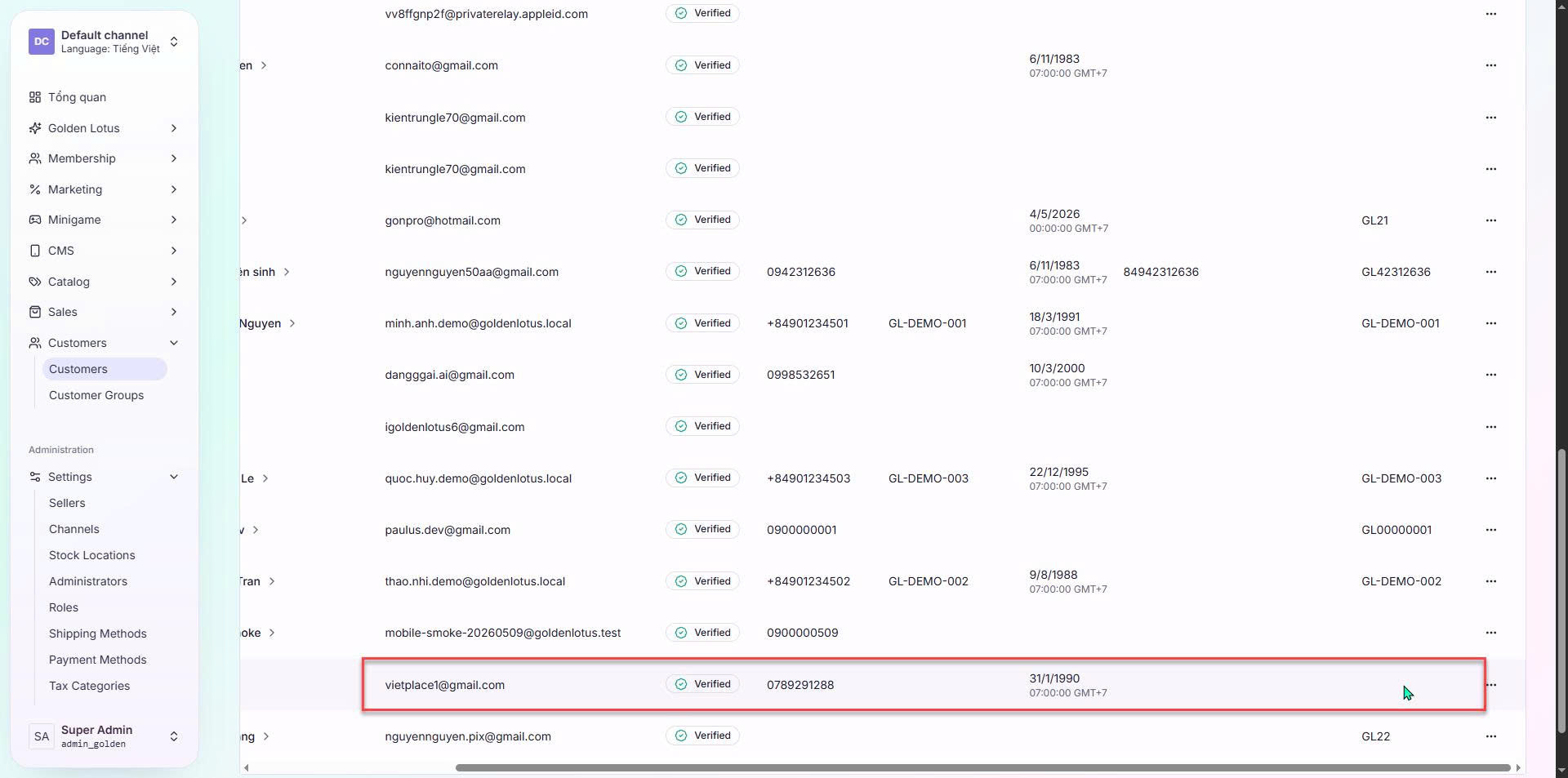

Feedback Screenshot:

• Actual UI: Customer list is missing the Membership Tier column; columns are misaligned and view settings are not saved

---

1. Identified Issues

In the CMS Customers list screen:

1. No Persistent Table View: Toggling table columns does not persist. Reloading/Navigating away resets the selected columns, losing the default view.
2. Missing "Membership Tier" Column: There is no column showing whether a user is Silver, Gold, Platinum, or Diamond. This is the single most important parameter for membership administration.
3. Column Overcrowding & Width Issues: Text is clipped (e.g. name column) while empty columns consume space.

---

2. Solution Specifications

2.1 Default Table View Columns

We establish a standardized default view containing exactly the following columns in order. This view must be set as the default database/localStorage configuration so that it loads instantly for all admins:

Order	Column Name (VN)	JSON Key	Width	Content Format
1	STT	index	60px	Static row count (see cms-table-pagination-standard.md)
2	Họ và Tên	fullName	180px	Bold string (e.g., Nguyen Van A)
3	Hạng thành viên	membershipTier	120px	[NEW] Tier Badge (Silver/Gold/Plat/Dia)
4	Số điện thoại	phone	130px	Standard numeric string
5	Email	email	200px	Standard email string
6	Mã thành viên	membershipCode	130px	Unique member ID code (e.g. GL-DEMO-001)
7	Mã giới thiệu	referralCode	120px	Auto-generated code (see auto-referral-code-generation.md)
8	Trạng thái	status	100px	Status Badge (Verified / Registered)
9	Thao tác	actions	100px	Action button popover (Edit details, View transaction history)

---

2.2 Membership Tier Column Styles

Render the tier column with distinct background colors corresponding to the brand tiers:

🥈 SILVER   →  Background: #E0E0E0, Text: #424242
🥇 GOLD     →  Background: #FFF9C4, Text: #F57F17
💎 PLATINUM →  Background: #E1F5FE, Text: #0288D1
💎 DIAMOND  →  Background: #ECE0FD, Text: #6200EA

---

2.3 Persistent Column Settings (View State Storage)

To prevent column selections from resetting:

• Client-side Storage: Save the list of active column IDs in the browser's localStorage under the key cms_customer_table_columns.
• Initialization: On component mount, check localStorage. If empty, load the standard default list (detailed in Section 2.1).

---

3. Code Implementation Spec (React / Saleor Dashboard)

// Inside CustomerListTable.tsx

import React, { useEffect, useState } from 'react';

const DEFAULT_COLUMNS = [
  'index',
  'fullName',
  'membershipTier', // ✅ NEW column
  'phone',
  'email',
  'membershipCode',
  'referralCode',
  'status',
  'actions'
];

export const CustomerListTable = () => {
  const [selectedColumns, setSelectedColumns] = useState<string[]>([]);

  // Load configuration on mount
  useEffect(() => {
    const savedCols = localStorage.getItem('cms_customer_table_columns');
    if (savedCols) {
      try {
        setSelectedColumns(JSON.parse(savedCols));
      } catch {
        setSelectedColumns(DEFAULT_COLUMNS);
      }
    } else {
      setSelectedColumns(DEFAULT_COLUMNS);
    }
  }, []);

  // Save configuration when columns are modified
  const handleColumnToggle = (columnId: string) => {
    const updated = selectedColumns.includes(columnId)
      ? selectedColumns.filter(c => c !== columnId)
      : [...selectedColumns, columnId];

    setSelectedColumns(updated);
    localStorage.setItem('cms_customer_table_columns', JSON.stringify(updated));
  };

  return (
    <Table>
      <TableHeader>
        {selectedColumns.includes('index') && <TableCell style={{ width: 60 }}>STT</TableCell>}
        {selectedColumns.includes('fullName') && <TableCell style={{ width: 180 }}>Họ và Tên</TableCell>}
        {selectedColumns.includes('membershipTier') && <TableCell style={{ width: 120 }}>Hạng</TableCell>}
        {/* ...other headers */}
      </TableHeader>
      <TableBody>
        {customers.map((user, idx) => (
          <TableRow key={user.id}>
            {selectedColumns.includes('index') && <TableCell>{idx + 1}</TableCell>}
            {selectedColumns.includes('fullName') && <TableCell>{user.fullName}</TableCell>}
            {selectedColumns.includes('membershipTier') && (
              <TableCell>
                <TierBadge tier={user.membershipTier} /> {/* Render colored badges */}
              </TableCell>
            )}
            {/* ...other cells */}
          </TableRow>
        ))}
      </TableBody>
    </Table>
  );
};

---

Technical Checklist

• Add the Hạng thành viên (membershipTier) property to the Customer API response payload from the backend.
• Add the membershipTier header descriptor block in CustomerListTable.tsx.
• Implement the TierBadge styled component with specific colors for Silver, Gold, Platinum, and Diamond.
• Implement localStorage hooks in the table container component to load and save column configuration.
• Set DEFAULT_COLUMNS array to match the order described in Section 2.1.
• Adjust table layout widths to prevent name truncation and hide unused/empty columns by default.
• Test view persistence:
  • Open the customer list, toggle off the "Email" column.
  • F5 / Refresh the browser page.
  • Verify that the "Email" column remains hidden and the layout does not reset.
