Functional Specification: Multi-language Entity Binding & Mobile Deep-link Translation Routing

Last Updated: 16/07/2026
Type: Functional Specification — Localization (i18n) & Routing
Scope: CMS Admin Panel (Translation Bindings) & Mobile App Navigation (Language Switcher)
Severity: 🔴 High — Essential for international users; prevents navigation breakage when changing language in-app

Feedback Reference:

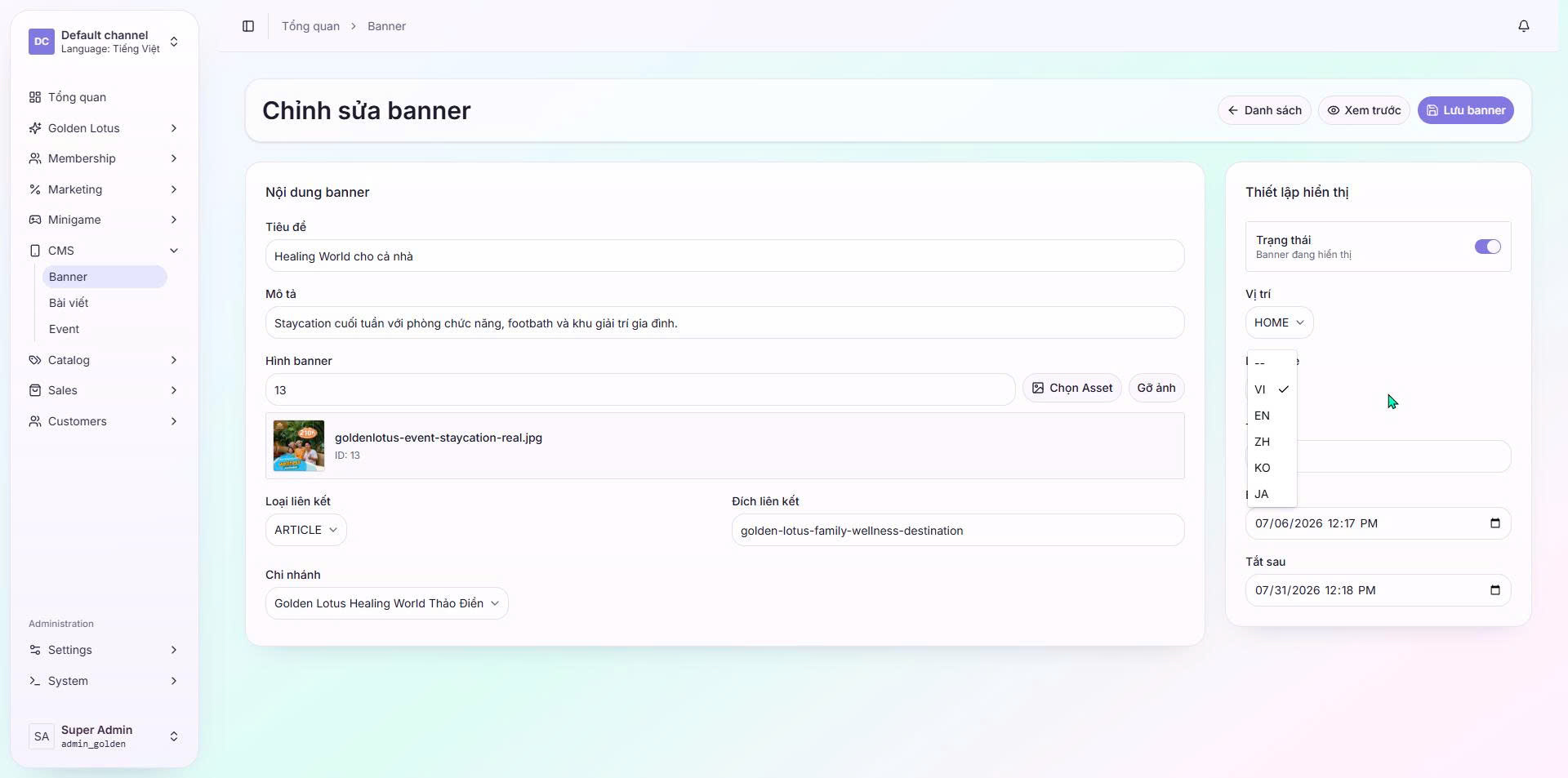

• Reference UI: CMS Banner edit panel with the language selector dropdown (VI, EN, ZH, KO, JA)

---

1. Overview & Business Requirements

The Golden Membership system serves multi-lingual customers (Vietnamese, English, Chinese, Korean, Japanese).

To ensure a seamless user experience:

1. CMS Admin (Inline Translations): Admin should edit different language versions of the same banner, article, or event within the same form context. These translations must be bound together under a single group identifier.
2. Mobile App (State Persistence on Translation): If a user is viewing a detail screen (e.g., an Article detail screen) and decides to switch the app language, the app must reload the current screen using the linked translation ID/slug. It must NOT crash, throw a 404, or force-exit the user back to the Home screen.

---

2. CMS Backend & Database Translation Architecture

To link translations together, we use a Translation Group Model. Each article, event, or banner does not float independently; it is bound to a translation group:

                  ┌──────────────────────────────┐
                  │    Translation Group Card    │
                  │    (translationGroupId: 999) │
                  └──────────────┬───────────────┘
                                 │
         ┌───────────────────────┼───────────────────────┐
         ▼                       ▼                       ▼
┌─────────────────┐     ┌─────────────────┐     ┌─────────────────┐
│  Locale: "vi"   │     │  Locale: "en"   │     │  Locale: "ko"   │
├─────────────────┤     ├─────────────────┤     ├─────────────────┤
│ ID: 123         │     │ ID: 124         │     │ ID: 125         │
│ Slug: uu-dai-he │     │ Slug: summer-pkg│     │ Slug: summer-ko │
└─────────────────┘     └─────────────────┘     └─────────────────┘

2.1 Database Schema (Example)

interface TranslationGroup {
  id: string;
  type: 'article' | 'event' | 'banner';
  createdAt: Date;
}

interface Article {
  id: string;
  translationGroupId: string; // ✅ Links all translations together
  locale: 'vi' | 'en' | 'zh' | 'ko' | 'ja';
  title: string;
  slug: string;
  body: string;
  // ...other fields
}

2.2 CMS Interface Requirements

• When editing a banner/article, changing the language dropdown (VI, EN, etc.) in the sidebar must save the current locale's fields and fetch the inputs for the selected locale within the same editing session (inline).
• If a translation does not exist yet for the selected language, show an empty form with an "Add Translation" button.

---

3. Mobile App Navigation & Translation Reloading

When the user changes the app language setting, the mobile app triggers a global language update. We must intercept this event to reload the active view parameters:

3.2 Dynamic Route Parameter Mapping

Current Screen Stack: ArticleDetailScreen (params: { id: 123, slug: 'uu-dai-he' })
    ↓
User opens settings → Change language to English ("en")
    ↓
App calls API: GET /api/translations/resolve?fromId=123&targetLocale=en
    ↓
API returns linked ID: { targetId: 124, targetSlug: 'summer-pkg' }
    ↓
App updates route params: navigate('ArticleDetail', { id: 124, slug: 'summer-pkg' })
    ↓
Current screen stays active and re-fetches the English content.
(User is NOT redirected to Home)

3.3 React Native Navigation Handler Example

import React, { useEffect } from 'react';
import { useNavigation, useRoute } from '@react-navigation/native';
import { useLanguage } from '../context/LanguageContext';

export const ArticleDetailScreen = () => {
  const route = useRoute();
  const navigation = useNavigation();
  const { currentLanguage } = useLanguage();
  const { id } = route.params;

  useEffect(() => {
    const resolveAndSwitchTranslation = async () => {
      try {
        // Query the API to find the translation ID for the new language
        const response = await api.resolveTranslationId({
          currentId: id,
          targetLocale: currentLanguage
        });

        if (response.targetId && response.targetId !== id) {
          // Update the screen navigation stack in place with the correct translation ID
          navigation.setParams({ id: response.targetId });
        }
      } catch (error) {
        console.warn("Could not resolve translated entity ID", error);
        // Fallback: stay on current id or handle gracefully. Do NOT force goBack() to Home.
      }
    };

    resolveAndSwitchTranslation();
  }, [currentLanguage]); // Triggers automatically when app language changes

  // Fetch and render content normally based on route.params.id...
};

---

Technical Checklist

CMS Backend & Database:

• Implement translationGroupId binding on Article, Event, and Banner schemas.
• Create a translation resolver endpoint: GET /api/translations/resolve?fromId=<id>&targetLocale=<locale>.
• Update the CMS save controller: ensure translating an entity updates/saves under the same translationGroupId rather than spawning unrelated items.

CMS Admin UI:

• Build the inline language selector panel. Tapping a new language must save current drafts and toggle local input fields inline.

Mobile App:

• Intercept language switch actions on detail screens (Articles, Events).
• Implement navigation.setParams() or route updates to reload content with the matched translated ID instead of pushing to root/home.
• Handle error states: if no translation exists for the target language, display the original version but wrap it in a notification banner (e.g. "This article is only available in Vietnamese").
• Validate on iOS and Android: open an article detail, change app language from settings, and confirm the details reload correct language content in place.
