Bug Fix: Bottom Tab Bar Shifted Upward — Missing Safe Area Bottom Inset

Last Updated: 15/07/2026
Type: Bug — UI Layout / Safe Area
Screen: App-wide — Bottom Tab Navigator
Severity: 🔴 High — Affects entire app, visible on all main screens

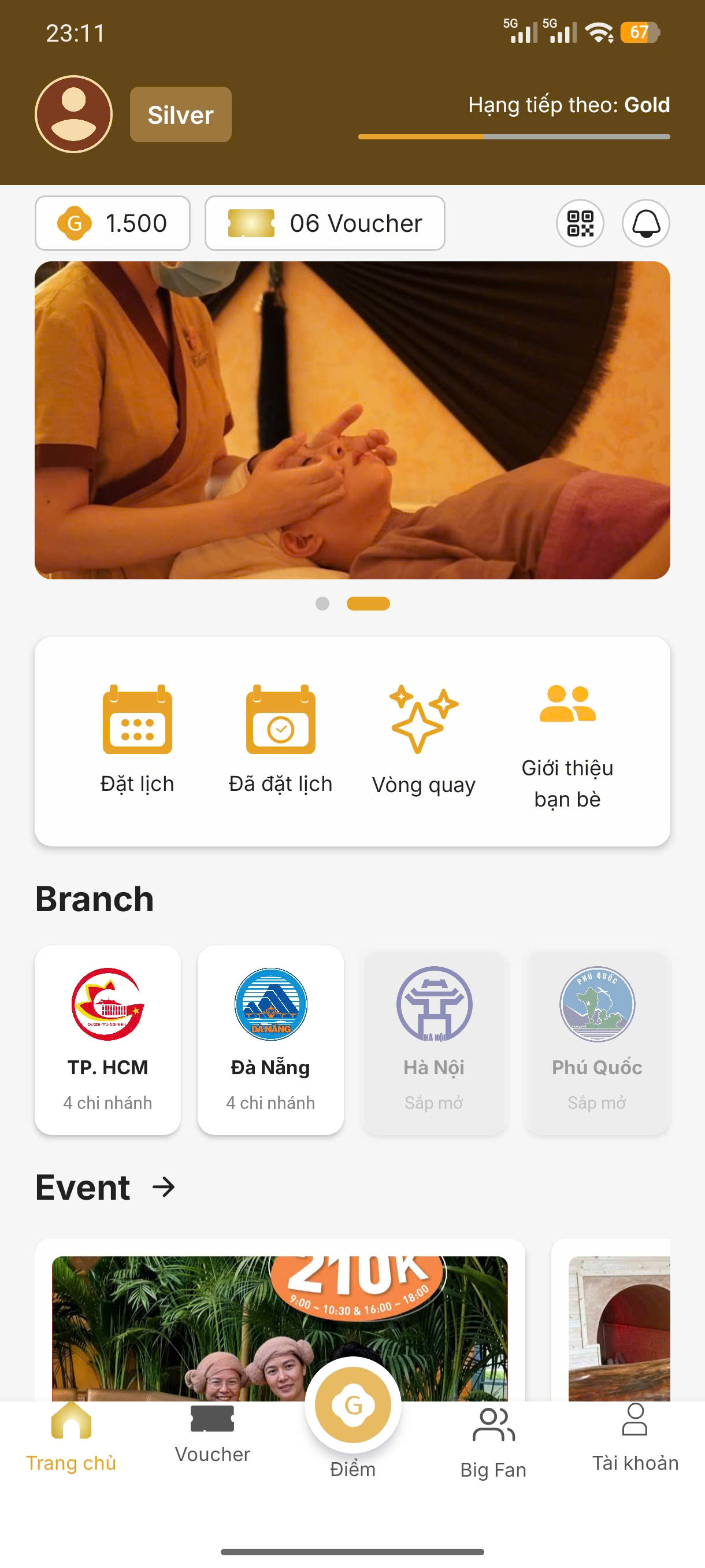

Feedback Screenshot:

• Actual UI: Bottom tab bar shifted upward, overlapping screen content

---

1. Bug Description

The Bottom Tab Bar (navigation menu at the bottom containing: Home / Voucher / GPoint / Big Fan / Account) displays higher than its intended position — overlapping the screen content area (specifically the Event section), instead of sitting flush at the bottom of the screen beneath the iOS home indicator (black horizontal bar).

Symptoms:

• The tab bar blocks a portion of the content at the bottom of the screen.
• The center GPoint button floats correctly, but the rest of the tab bar sits awkwardly high and misaligned.
• The iOS home indicator appears below the tab bar background instead of being overlaid on it.

---

2. Root Cause

The Bottom Tab Navigator lacks paddingBottom matching the bottom inset from the Safe Area — which represents the space reserved by the OS for the home indicator on iOS (and navigation gestures on modern Android).

On devices without a physical Home button (iPhone X or newer, and most modern Android devices), the system requires apps to manually apply bottom padding so content/UI is not obscured by navigation overlays.

---

3. Solution

Option 1 — Apply safeAreaInsets in the Tab Navigator (Recommended ✅)

If using React Navigation with @react-navigation/bottom-tabs:

import { useSafeAreaInsets } from 'react-native-safe-area-context';

const AppTabNavigator = () => {
  const insets = useSafeAreaInsets();

  return (
    <Tab.Navigator
      screenOptions={{
        tabBarStyle: {
          // Add paddingBottom matching the safe area bottom inset
          paddingBottom: insets.bottom,
          // Increase the overall height to maintain icon + label spacing
          height: 60 + insets.bottom,
        },
      }}
    >
      {/* ... Tab.Screen configurations */}
    </Tab.Navigator>
  );
};

Option 2 — Wrap Tab Navigator inside a bottom-edged SafeAreaView

import { SafeAreaView } from 'react-native-safe-area-context';

const RootLayout = () => (
  <SafeAreaView style={{ flex: 1 }} edges={['bottom']}>
    <AppTabNavigator />
  </SafeAreaView>
);

Option 3 — Apply safeAreaInsets directly to tabBarStyle overrides

import { Platform } from 'react-native';
import { useSafeAreaInsets } from 'react-native-safe-area-context';

// Within the component wrapping Tab.Navigator:
const insets = useSafeAreaInsets();
const TAB_BAR_HEIGHT = 60;

<Tab.Navigator
  screenOptions={{
    tabBarStyle: {
      position: 'absolute',
      bottom: 0,
      left: 0,
      right: 0,
      height: TAB_BAR_HEIGHT + insets.bottom,
      paddingBottom: insets.bottom,
      paddingTop: 8,
      backgroundColor: '#FFFFFF',
      borderTopWidth: 1,
      borderTopColor: '#F0F0F0',
      elevation: 10,        // Android shadow
      shadowColor: '#000',  // iOS shadow
      shadowOffset: { width: 0, height: -2 },
      shadowOpacity: 0.06,
      shadowRadius: 8,
    },
    tabBarLabelStyle: {
      fontSize: 11,
      marginBottom: 2,
    },
  }}
/>

[!WARNING] If using position: 'absolute' for the tab bar, you must append a corresponding paddingBottom to each screen's main ScrollView / FlatList to prevent the bottom tab bar from overlapping content when fully scrolled.

<ScrollView contentContainerStyle={{ paddingBottom: TAB_BAR_HEIGHT + insets.bottom }}>
  {/* content */}
</ScrollView>

---

4. Adjusting the Center Floating Button (GPoint Icon)

The GPoint button in the center of the tab bar floats above the rest. Ensure its offset is correctly adjusted with the insets:

// Floating center button — offset adjustment
const CenterTabButton = ({ children, onPress }) => {
  const insets = useSafeAreaInsets();
  return (
    <TouchableOpacity
      style={{
        top: -20,            // Floating 20px above the bar
        alignItems: 'center',
        justifyContent: 'center',
        // Offset paddingBottom from the parent tab bar
        marginBottom: insets.bottom / 2,
      }}
      onPress={onPress}
    >
      {children}
    </TouchableOpacity>
  );
};

---

5. Priority Test Devices

Device	Safe Area Characteristics	Test Status
iPhone 14/15 (Dynamic Island)	bottom inset = 34px	✅ High Priority
iPhone SE (with Home button)	bottom inset = 0	✅ Verify no extra gap
Android gesture navigation	bottom inset = 24-48px	✅
Android 3-button navigation	bottom inset = 0	✅

---

Technical Checklist

• Locate the Tab Navigator configuration (typically in AppNavigator.tsx or BottomTabNavigator.tsx).
• Add useSafeAreaInsets() and apply insets.bottom to both tabBarStyle.paddingBottom and tabBarStyle.height.
• Ensure the center floating GPoint button is positioned correctly after the bottom inset changes.
• If using absolute positioning for the tab bar, add paddingBottom = TAB_BAR_HEIGHT + insets.bottom to all ScrollViews/FlatLists in the app.
• Test on: an iPhone with Dynamic Island, an iPhone SE, an Android device in gesture mode, and an Android device in 3-button mode.
• Ensure react-native-safe-area-context is wrapped under a SafeAreaProvider at the app's root level.
